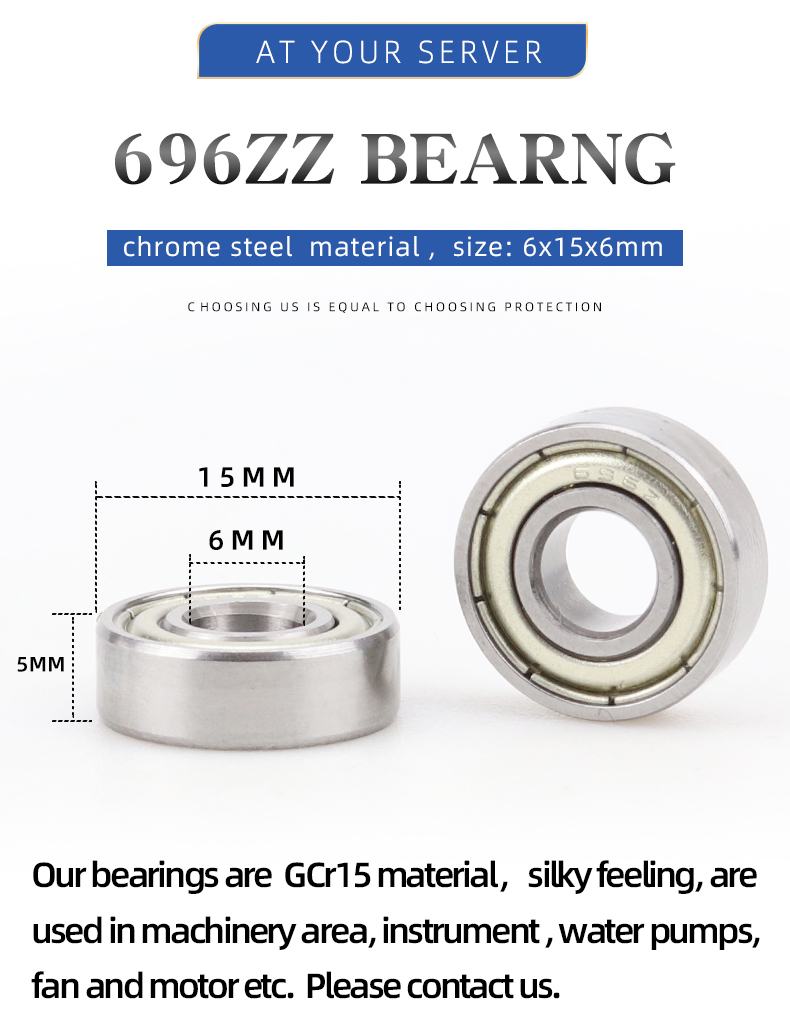

696ZZ Shielded Miniature Bearing 6×15×6mm

In the precision field of mechanical transmission, the quality of each type of bearing is related to the stability and efficiency of equipment operation. Relying on our full-category bearing product matrix, Deeply cultivate Stainless steel bearing, Ball bearing, Deep groove ball bearing, Non-standard bearing, Small bearing and Water pump bearing In the field, with advanced technology and strict quality control, we provide reliable transmission solutions for various industries. ​

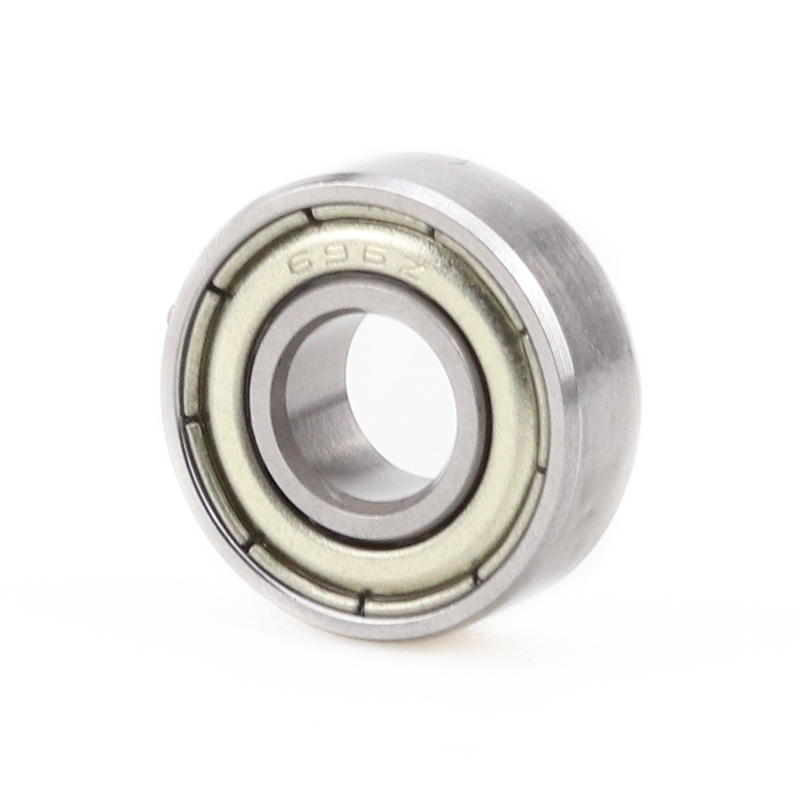

The 696ZZ shielded miniature bearing, with dimensions of 6×15×6mm, is a typical representative of Small bearings. With its compact size of 6×15×6mm, it precisely fits precision devices such as medical equipment and electronic instruments that have strict space requirements. Its double dust cover (ZZ) shielding structure is made of high-strength stamped steel and closely adheres to the inner and outer rings of the bearing through a precise riveting process. It has been verified by the IP54 protection level test and can effectively prevent dust particles and splashing water droplets with a diameter of ≥0.1mm from entering, significantly reducing the risk of bearing wear caused by impurities and the frequency of equipment maintenance. ​

In terms of material, high-carbon chromium bearing steel of the same grade as Stainless steel bearing is selected. After quenching and tempering treatment, the hardness reaches HRC60-62. In the friction and wear test, the wear weight loss is ≤0.02mg/h, and it has excellent wear resistance. This bearing adopts the point contact rolling element design of Ball bearing, combined with the classic Deep groove raceway structure of Deep groove ball bearing. Through dynamic simulation analysis, it can withstand radial loads up to 1.1kN, axial loads up to 0.4kN, and the friction coefficient during operation is as low as 0.007. At a high-speed operation of 12,000 r/min, the vibration acceleration is ≤8m/s², providing stable and reliable power transmission for the precision transmission components of the automated production line. ​

If your project has special specification requirements, our Non-standard bearing customization service can provide personalized customization solutions from material selection, sealing form to tolerance grade based on equipment parameters and working conditions. In the application of Water pump equipment, the 696ZZ shielded miniature bearing was tested by simulating the start-stop shock and continuous vibration of the water pump. The dynamic load coefficient (C) reached 1.35kN. After continuous operation for 1000 hours, the change in bearing clearance was ≤0.01mm, demonstrating stable performance comparable to that of Water pump bearing. It can effectively guarantee the efficient operation of the small water pump system. ​

From precision instruments in scientific research laboratories to key equipment in industrial production, the 696ZZ shielded miniature bearing 6×15×6mm, with its outstanding performance, works in tandem with our full range of main products to provide a solid guarantee for mechanical operation and help various industries embark on a new journey of high efficiency and stability.
